- Two sintering levels — a whole day's production in one cycle.
- Speed sintering when time is short — a conventional cycle when the surface has to be perfect.
- Silicon carbide elements — even heat from three directions.

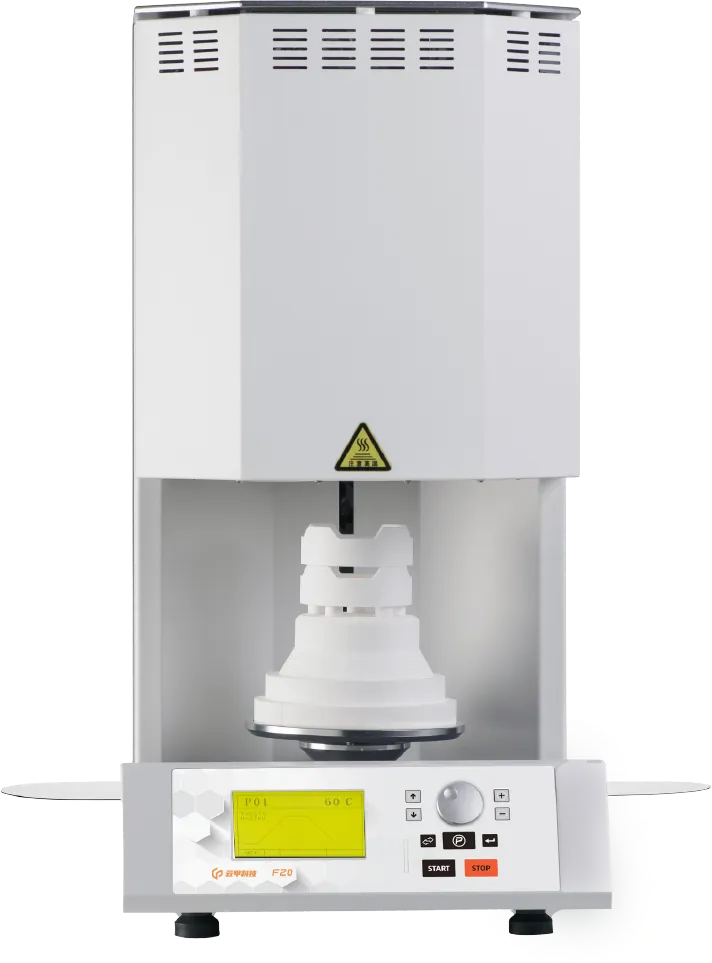

Sintering is the last step where something can still go wrong, and a failed cycle costs the whole batch. The triangular chamber gives a balanced heat field, so the crowns on the outside come out like the ones in the middle no matter how full it is. The segmented cooling takes the restorations through the critical temperature ranges at a controlled rate instead of letting them cool freely, and the furnace reads voltage, current and ambient temperature during the cycle so that deviations show up before they become a lost batch.
Key features
Triangular chamber
A balanced heat field throughout the chamber. The crowns at the edge sinter like the ones in the middle.
Silicon carbide elements
Imported SiC elements heat evenly and withstand the fast cycles year after year.
Two sintering levels
Two levels in the sintering box. More units per cycle without packing them tightly.
Selectable speeds
Speed sintering when you are in a hurry, conventional cycle when the surface has to be perfect.
Segmented cooling
Controlled cooling through the critical ranges instead of free cooling.
Real-time monitoring
Voltage, current and ambient temperature are read during the cycle and shown on the display.
Fault diagnostics in the furnace
Points out what is wrong instead of just stopping. Shorter downtime.
Key figures
Max temperature1550 °C
Heating elementSilicon carbide (SiC)
ChamberTriangular, double sintering level
CoolingSegmented and controlled
MonitoringVoltage, current and ambient temperature
Protection classIP21
Power2500 W
Electrical220 V, 50 Hz
Dimensions420 × 465 × 800 mm
Weight44 kg
Specifications
| Brand | UP3D |
